CATALOGUECATALOGUE WAVECATALOGUE WAVE 110 S (04/2009-04/2013) / WAVE 110 RS (04/2009-04/2013) / WAVE 110 RSX (09/2009-03/2012)BỘ PHỤ TÙNG E – 2 CATALOGUE ĐẦU QUY LÁT HONDA WAVE 110 S (04 / 2009 – 04 / 2013) / WAVE 110 RS (04 / 2009 – 04 / 2013) / WAVE 110 RSX (09 / 2009 – 03 / 2012)

Chi tiết sơ đồ tài liệu tra cứu phụ tùng:

BỘ PHỤ TÙNG E - 2 CATALOGUE ĐẦU QUY LÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

TRƯỚC

TIẾP

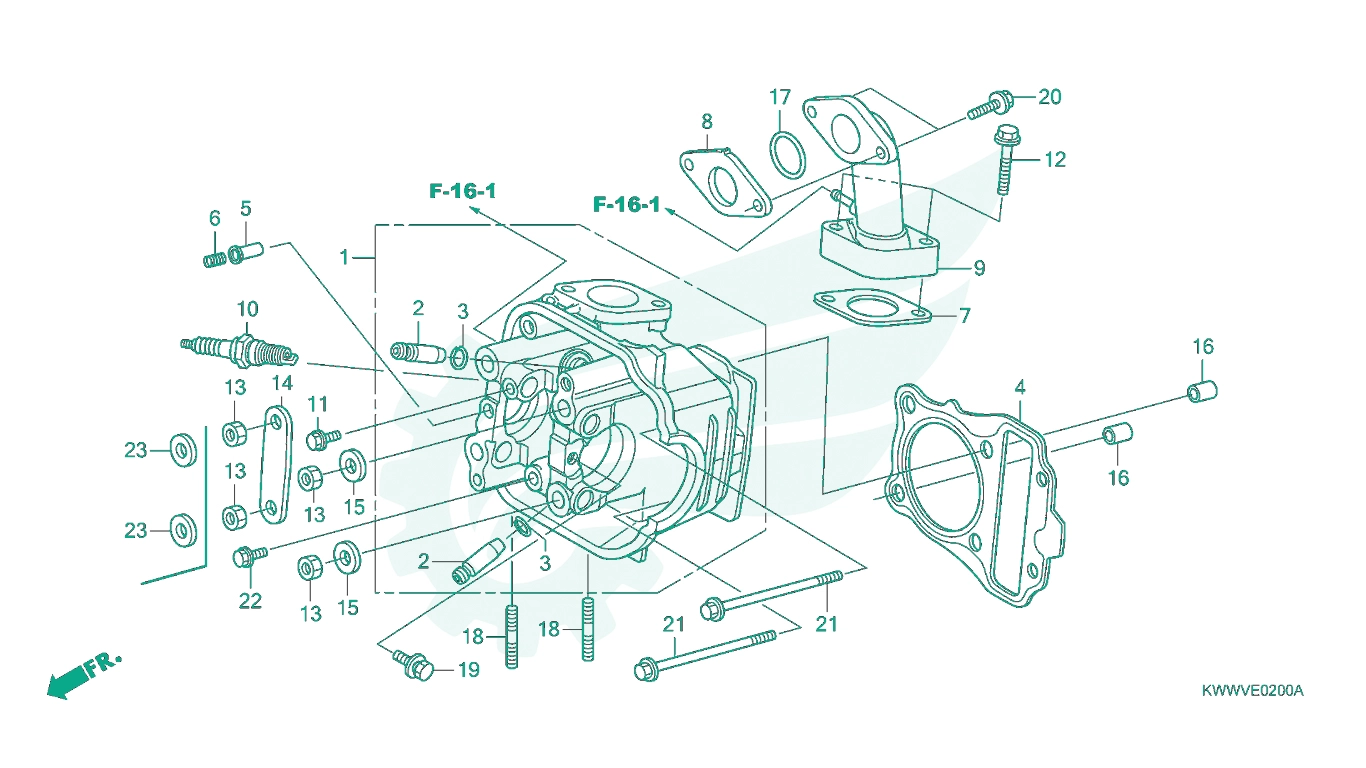

Sơ đồ phụ tùng Honda - BỘ PHỤ TÙNG E - 2 CATALOGUE ĐẦU QUY LÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

SƠ ĐỒ TÀI LIỆU KHÁC CÙNG THUỘC BỘ CATALOGUE

TRANG TÀI LIỆU NHÓM TÀI LIỆU

BỘ PHỤ TÙNG E - 1 CATALOGUE ỐP ĐẦU QUY LÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 3 CATALOGUE TRỤC CAM / XU PÁP HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 4 CATALOGUE XÍCH CAM / CĂNG XÍCH CAM HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 5 CATALOGUE XY LANH HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 6 CATALOGUE ỐP VÁCH MÁY PHẢI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 7 CATALOGUE LY HỢP MỘT CHIỀU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 8 CATALOGUE LY HỢP HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 9 CATALOGUE BƠM DẦU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 10 CATALOGUE ỐP VÁCH MÁY TRÁI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 11 CATALOGUE MÁY PHÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 12 CATALOGUE LY HỢP KHỞI ĐỘNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 13 CATALOGUE MÔ TƠ ĐỀ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 14 CATALOGUE VÁCH MÁY HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 15 CATALOGUE TRỤC CƠ / PISTON HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG E - 16 CATALOGUE BỘ TRUYỀN ĐỒNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG E - 17 CATALOGUE HEO SỐ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG E - 18 CATALOGUE TRỤC CẦN KHỞI ĐỘNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG E - 19 CATALOGUE CHẾ HÒA KHÍ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 1 CATALOGUE ĐÈN PHA HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 2 CATALOGUE ĐỒNG HỒ (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 2 - 1 CATALOGUE ĐỒNG HỒ (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 3 CATALOGUE TAY PHANH / CÔNG TẮC / DÂY / GƯƠNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 4 CATALOGUE XY LANH CHÍNH PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 5 CATALOGUE ỐP TAY LÁI / ỐNG TAY LÁI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 6 CATALOGUE CỔ LÁI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 7 CATALOGUE CHẮN BÙN TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 8 CATALOGUE GIẢM XÓC TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 9 CATALOGUE BÁT PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 9 - 1 CATALOGUE NGÀM PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 10 CATALOGUE BÁNH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 10 - 2 CATALOGUE BÁNH XE TRƯỚC (ANF110MCV / AFX - AFS110MCS) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 11 CATALOGUE BÁT PHANH SAU WAVE 110S (04 / 2009–04 / 2013) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 12 CATALOGUE BÁNH XE SAU (ANF110MCV / AFX - AFS110MCS) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 12 - 1 CATALOGUE BÁNH XE SAU (ANF110MCV / AFX - AFS110MCS) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 13 CATALOGUE BÌNH XĂNG (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 13 - 1 CATALOGUE BÌNH XĂNG (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 14 CATALOGUE YÊN XE / ẮC QUY (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 14 - 1 CATALOGUE YÊN XE / ẮC QUY (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 15 CATALOGUE BỘ ỐP THÂN XE (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 16 CATALOGUE LỌC GIÓ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 16 - 1 CATALOGUE VAN HÚT KHÍ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 17 CATALOGUE ỐNG XẢ (ANF110 / AFS110) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG E - 17 - 1 CATALOGUE ỐNG XẢ (AFX110) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 18 CATALOGUE CÀNG SANG SỐ / CẦN KHỞI ĐỘNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 19 CATALOGUE GÁC CHÂN HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 20 CATALOGUE CHÂN CHỐNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 21 CATALOGUE CÀNG SAU (GẮP SAU) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 22 CATALOGUE GIẢM XÓC SAU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 23 CATALOGUE CHẮN BÙN SAU (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 23 - 1 CATALOGUE CHẮN BÙN SAU (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 24 CATALOGUE CỤM ĐÈN SAU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 25 CATALOGUE BỘ DÂY ĐIỆN (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 25 - 1 CATALOGUE BỘ DÂY ĐIỆN (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 26 CATALOGUE KHUNG XE HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 27 CATALOGUE MẶT NẠ TRƯỚC (ANF1109 / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 27 - 1 CATALOGUE MẶT NẠ TRƯỚC (AFX110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 27 - 2 CATALOGUE MẶT NẠ TRƯỚC (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 28 CATALOGUE ỐP ỐNG CHÍNH KHUNG (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Frames

BỘ PHỤ TÙNG F - 28 - 1 CATALOGUE ỐP ỐNG CHÍNH KHUNG (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG F - 29 CATALOGUE DỤNG CỤ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG F - 30 CATALOGUE NHÃN CẢNH BÁO HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

BỘ PHỤ TÙNG F - 31 CATALOGUE TEM MÁC XE (ANF1109 / AFS110A) TEM MÁC XE HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

 		Engines

HỢP TÁC PHÁT TRIỂN HỆ THỐNG PHỤ TÙNG CÙNG ICSPARTS Co., Ltd

CHIA SẺ FILE EXCEL BẢNG GIÁ PHỤ TÙNG & FILE BỘ NHỰA

TẢI VỀ

TỔNG GIÁ TẠM TÍNH LÀ: 3.035.980 VNĐ VÀ CÓ TẤT CẢ: 28 CHI TIẾT

Đánh Giá
STT Tên phụ tùng Mã Giá Số lượng
1

12200KWWB10 - Cụm Đầu Quy Lát ( Đầu Bò ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

 		12200KWWB10 1.247.400 VNĐ
2

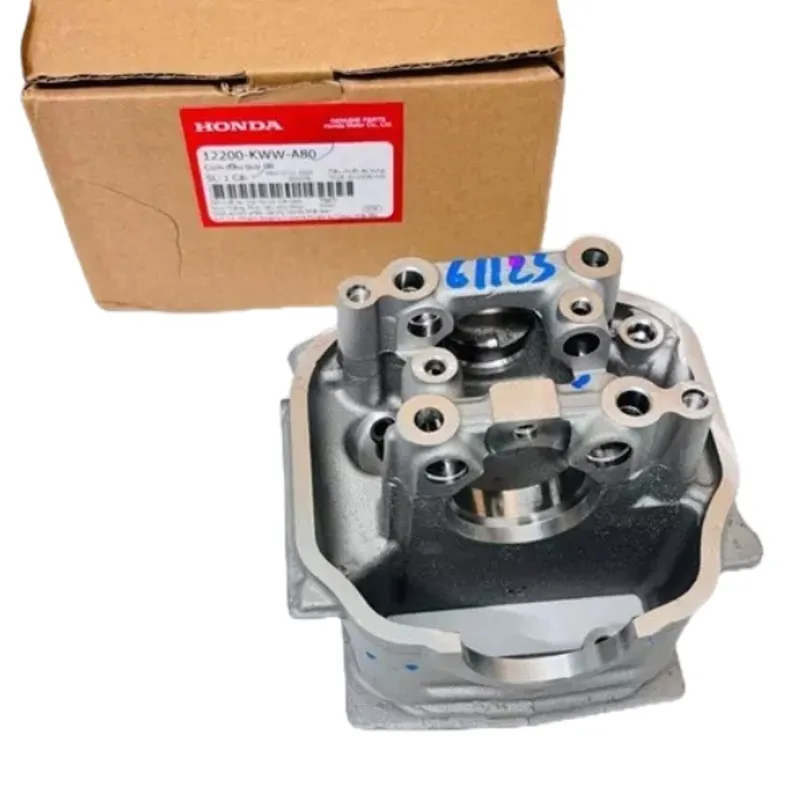

12200KWWA80 - Cụm Đầu Quy Lát ( Đầu Bò ) Dream 110, Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 )

 		12200KWWA80 949.300 VNĐ
2

12204KVY305 - Dẫn Hướng Xu Páp Xả Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		12204KVY305 196.560 VNĐ
3

12206KPL900 - Kẹp Dẫn Hướng Xu Páp Msx 125 Sf, Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Super Cub C125, Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Future 125 K73 ( 2020 ) , Wave Alpha 110 ( 2024 ) , Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		12206KPL900 5.500 VNĐ
4

12251KWB601 - Gioăng Đầu Xy Lanh Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		12251KWB601 23.760 VNĐ
5

14125KVY900 - Chốt Đẩy Cam Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

 		14125KVY900 11.880 VNĐ
6

14126KPGT00 - Lò Xo Chốt Đẩy Future Neo Ktmj, Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

 		14126KPGT00 8.800 VNĐ
7

16201KWB920 - Gioăng Cách Nhiệt Cổ Hút Dream 110, Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		16201KWB920 15.120 VNĐ
8

16211KPH900 - Đệm Phíp Chế Hòa Khí ( Bình Xăng Con - Bxc ) Dream 110, Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		16211KPH900 14.040 VNĐ
9

17110KWB920 - Cổ Hút Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

 		17110KWB920 115.560 VNĐ
9

17110KWWA80 - Cổ Hút Dream 110, Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 )

 		17110KWWA80 104.760 VNĐ
10

31916KWB601 - Bugi ( Cpr6Ea9S ) ( Ngk ) Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		31916KWB601 62.640 VNĐ
10

31926KWB601 - Bugi ( U20Epr9S ) ( Denso ) Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 )

 		31926KWB601 50.760 VNĐ
10

31917KWB601 - Bu Gi ( Cpr7Ea9S ) ( Ngk ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 )

 		31917KWB601 116.640 VNĐ
11

90002KWB600 - Bu Lông 5X12 Cb500X ( 2019+ ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Dream 110, Air Blade 125 / Air Blade 150 ( 2020+ ) , Pcx ( 01 / 2018+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Lead 125 ( 07 / 2017 - 06 / 2019 ) , Lead 125 ( 02 / 2013 - 02 / 2015 ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Air Blade 125 K27A ( 2012 ) , Air Blade 125 K27G ( 2014 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Pcx ( 2014 - 2017 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Lead 125 K12 ( 2019+ ) , Wave Rsx 110 Kww ( 2013 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

 		90002KWB600 5.500 VNĐ
12

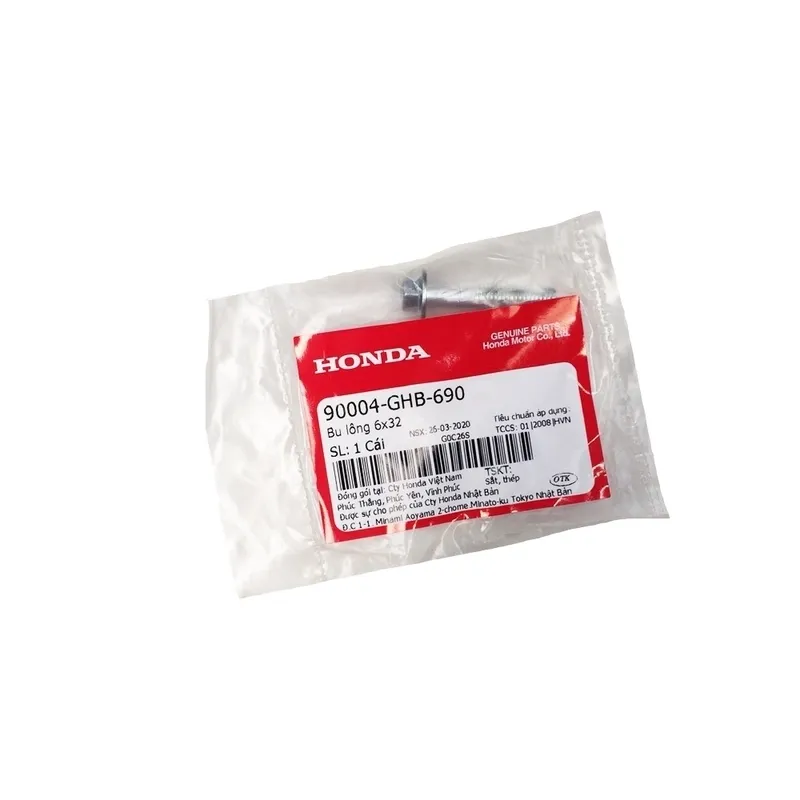

90004GHB690 - Bu Lông 6X32 Dream 110, Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		90004GHB690 6.600 VNĐ
13

90201GCC000 - Đai Ốc 7Mm Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		90201GCC000 5.500 VNĐ
14

90401KVY900 - Tấm Hãm Đầu Quy Lát ( Đầu Bò ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

 		90401KVY900 14.040 VNĐ
15

90402KWB600 - Vòng Đệm 7.2X16X2.5 Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

 		90402KWB600 9.720 VNĐ
15

90402KWW740 - Vòng Đệm 7.2X16X2.5 Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		90402KWW740 8.640 VNĐ
16

90701KFM900 - Chốt Định Vị 8X14 Super Dream ( C100 M1 - M4 - M6 ) , Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Vision 110 ( 09 / 2014+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

 		90701KFM900 5.400 VNĐ
17

91304GB1900 - Phớt ( Phốt ) O - Ring 25X2,4 Super Dream ( C100 M1 - M4 - M6 ) , Dream 110, Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Wave Alpha 110 ( 2024 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

 		91304GB1900 15.120 VNĐ
18

92900080320E - Gudông 8X32 Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		92900080320E 7.700 VNĐ
19

934040601200 - Bu Lông Có Đệm 6X12 Xe Ga, Xe Số

 		934040601200 5.500 VNĐ
20

960010602200 - Bu Lông 6X22 Air Blade, Dream, Future, Lead, Sh, Sh Mode, Spacy, Vision, Wave

 		960010602200 5.500 VNĐ
21

960010610000 - Bu Lông 6X100 Dream, Wave

 		960010610000 9.900 VNĐ
22

90002KWB600 - Bu Lông 5X12 Cb500X ( 2019+ ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Dream 110, Air Blade 125 / Air Blade 150 ( 2020+ ) , Pcx ( 01 / 2018+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Lead 125 ( 07 / 2017 - 06 / 2019 ) , Lead 125 ( 02 / 2013 - 02 / 2015 ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Air Blade 125 K27A ( 2012 ) , Air Blade 125 K27G ( 2014 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Pcx ( 2014 - 2017 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Lead 125 K12 ( 2019+ ) , Wave Rsx 110 Kww ( 2013 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

 		90002KWB600 5.500 VNĐ
23

90402KWW740 - Vòng Đệm 7.2X16X2.5 Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

 		90402KWW740 8.640 VNĐ
