Chi tiết sơ đồ tài liệu tra cứu phụ tùng:

BỘ PHỤ TÙNG E - 6 CATALOGUE ỐP VÁCH MÁY PHẢI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

Name: BỘ PHỤ TÙNG E - 6 CATALOGUE ỐP VÁCH MÁY PHẢI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)
Brand: HONDA
SKU: PTHD03959
Availability: InStock
Rating: 0 (0 reviews)

TIẾP

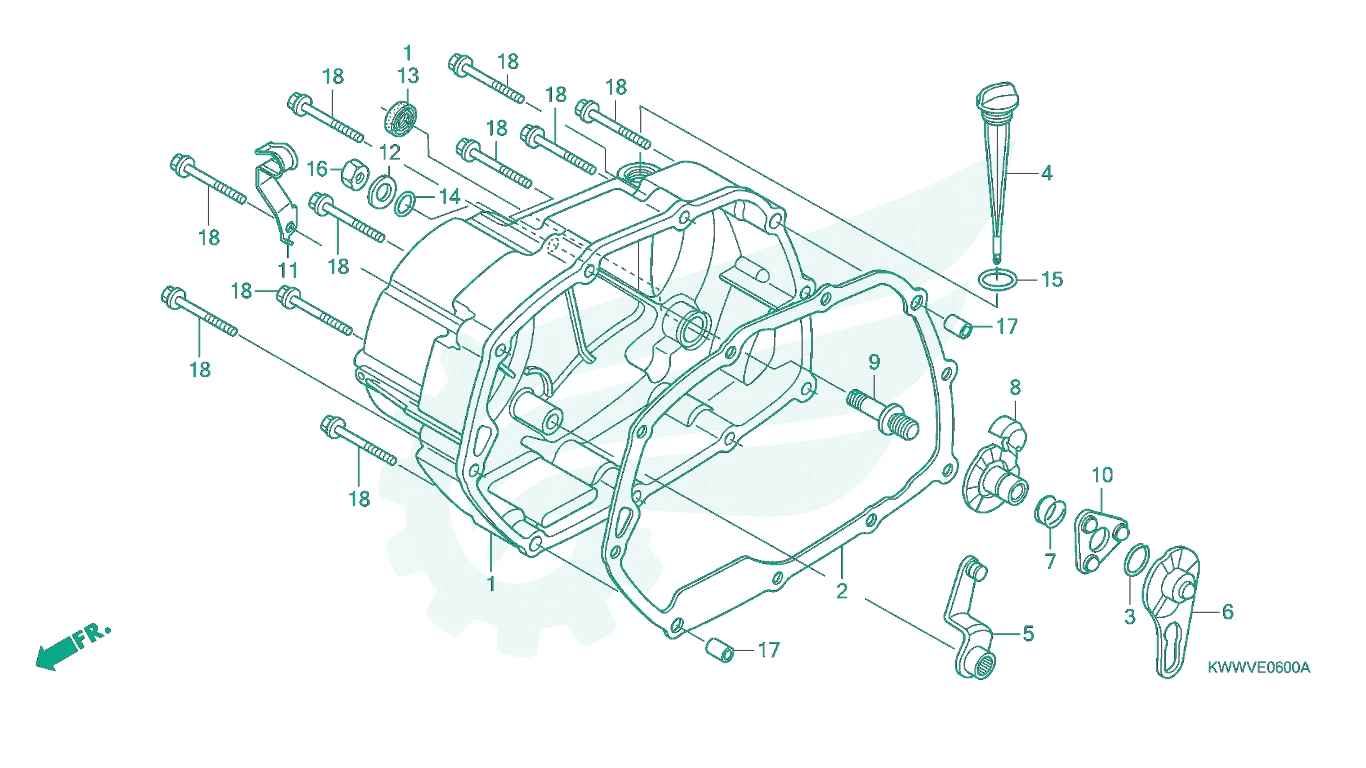

Sơ đồ phụ tùng Honda - BỘ PHỤ TÙNG E - 6 CATALOGUE ỐP VÁCH MÁY PHẢI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

1

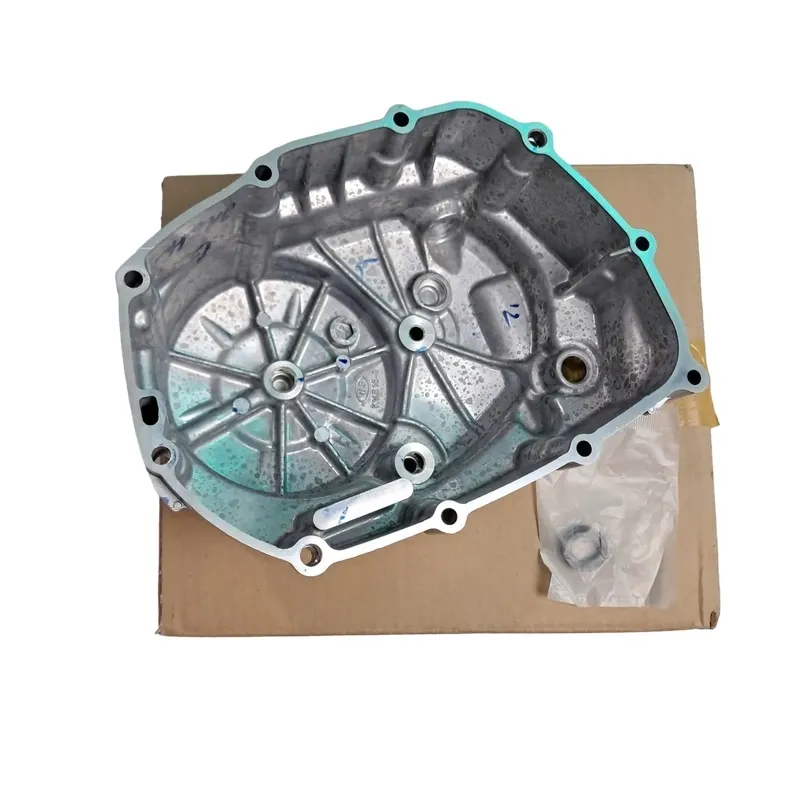

11330KWW710 - Nắp Máy Phải Dream 110, Wave 110 Rsx K07 ( 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[1]11330KWW710

491.400 VNĐ
1

11330KWW710 - Nắp Máy Phải Dream 110, Wave 110 Rsx K07 ( 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[1]11330KWW710

491.400 VNĐ
11330KWW710 - Nắp Máy Phải Dream 110, Wave 110 Rsx K07 ( 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[]11330KWW710

491.400 VNĐ
2

11394KWB920 - Gioăng Nắp Máy Phải Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

[2]11394KWB920

41.040 VNĐ
3

13115GN5910 - Phanh Cài ( Phe Cài ) Chốt Pít Tông ( Piston ) 13Mm Msx 125, Super Dream ( C100 M1 - M4 - M6 ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Msx 125 Sf, Dream 110, Air Blade 125 / Air Blade 150 ( 2020+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Super Cub C125, Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Pcx ( 2014 - 2017 ) , Lead 125 ( 07 / 2017 - 06 / 2019 ) , Lead 125 ( 02 / 2013 - 02 / 2015 ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Air Blade 125 K27G ( 2014 ) , Wave Alpha 110 ( 2024 ) , Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Lead 125 K12 ( 2019+ ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

[3]13115GN5910

5.500 VNĐ
4

15651KPH900 - Thước Thăm Dầu ( Thăm Nhớt ) Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 )

[4]15651KPH900

15.120 VNĐ
5

22810KTL740 - Cần Nâng Ly Hợp Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[5]22810KTL740

35.640 VNĐ
6

22823KWB600 - Đĩa Cam Nâng Ly Hợp Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[6]22823KWB600

28.080 VNĐ
6

22823KWB600 - Đĩa Cam Nâng Ly Hợp Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[6]22823KWB600

28.080 VNĐ
7

22825KWB600 - Lò Xo Ép Đĩa Cam Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[7]22825KWB600

9.720 VNĐ
7

22825KWB600 - Lò Xo Ép Đĩa Cam Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[7]22825KWB600

9.720 VNĐ
8

22830KWB600 - Giá Bi Nâng Ly Hợp Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[8]22830KWB600

32.400 VNĐ
8

22830KWB600 - Giá Bi Nâng Ly Hợp Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[8]22830KWB600

32.400 VNĐ
9

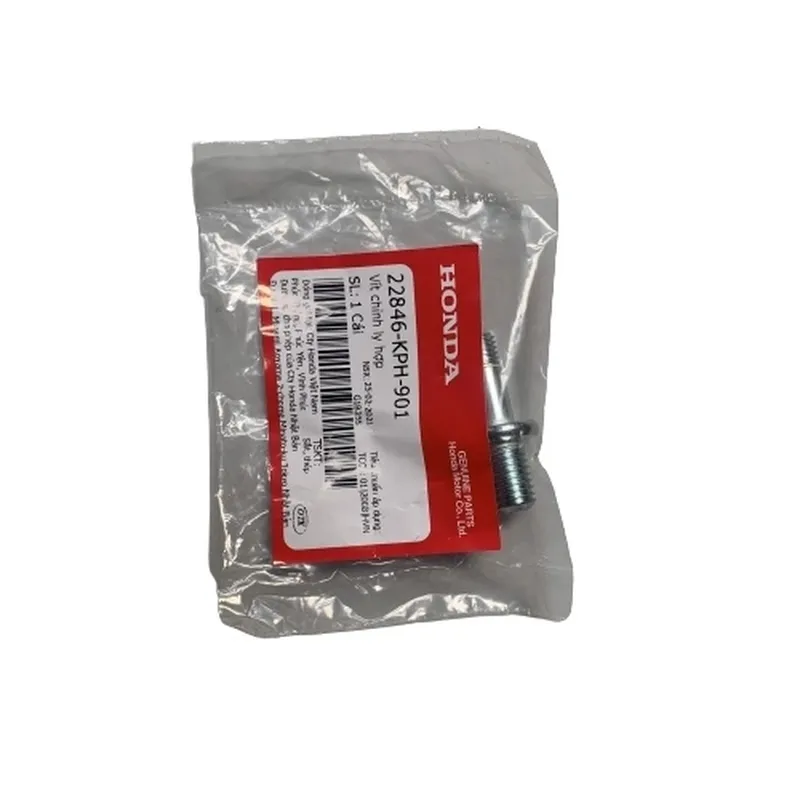

22846KPH901 - Vít Chỉnh Ly Hợp Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Wave Alpha 110 ( 2024 ) , Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

[9]22846KPH901

13.200 VNĐ
10

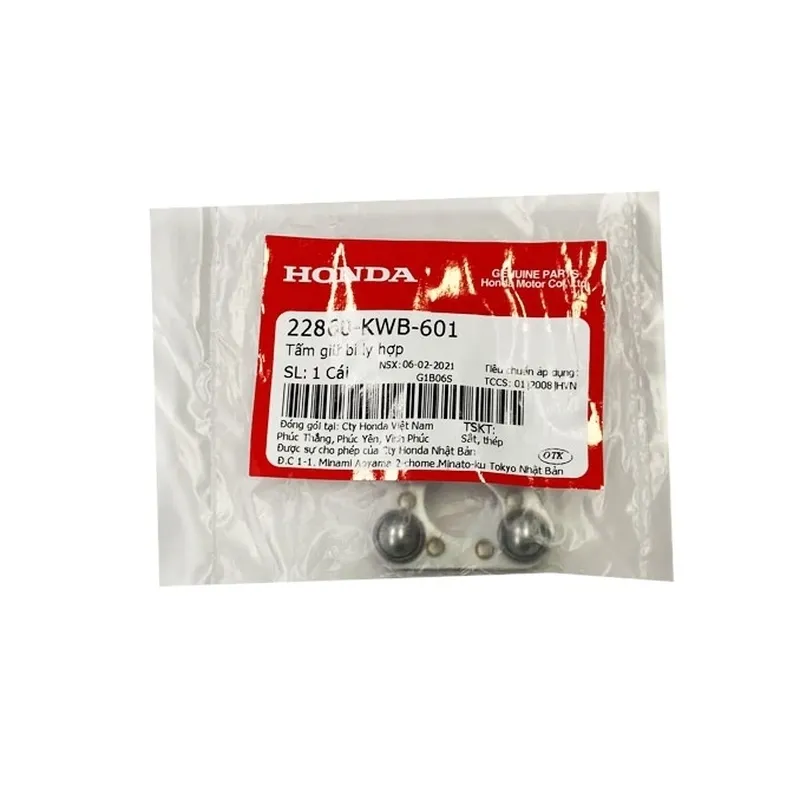

22860KWB601 - Tấm Giữ Bi Ly Hợp Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[10]22860KWB601

25.920 VNĐ
10

22860KWB601 - Tấm Giữ Bi Ly Hợp Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[10]22860KWB601

25.920 VNĐ
11

32906KWWA00 - Đai Kẹp Dây Phát Điện Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

[11]32906KWWA00

15.120 VNĐ
12

90485040000 - Vòng Đệm 8Mm Cub - C70, Dream, Future, Wave

[12]90485040000

5.400 VNĐ
13

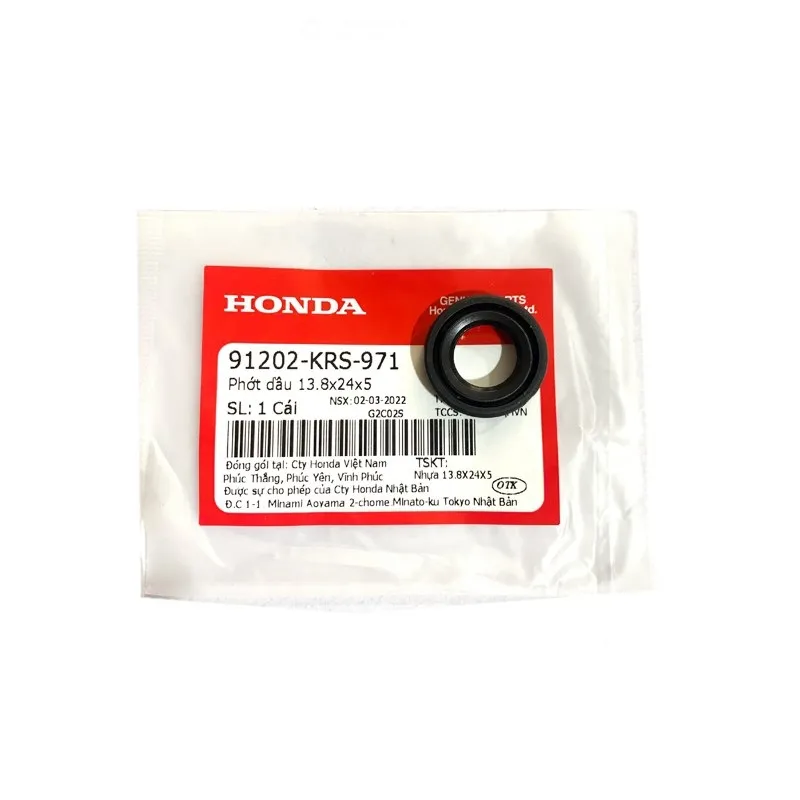

91202KRS971 - Phớt ( Phốt ) Dầu 13.8X24X5 Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Blade 110 ( 10 / 2020+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[13]91202KRS971

14.040 VNĐ
14

91303001000 - Phớt ( Phốt ) O - Ring 8Mm Cub - C70, Dream, Future, Wave

[14]91303001000

5.400 VNĐ
15

91307035000 - Phớt ( Phốt ) O - Ring 25X2,4 Xe Ga, Xe Số

[15]91307035000

5.400 VNĐ
16

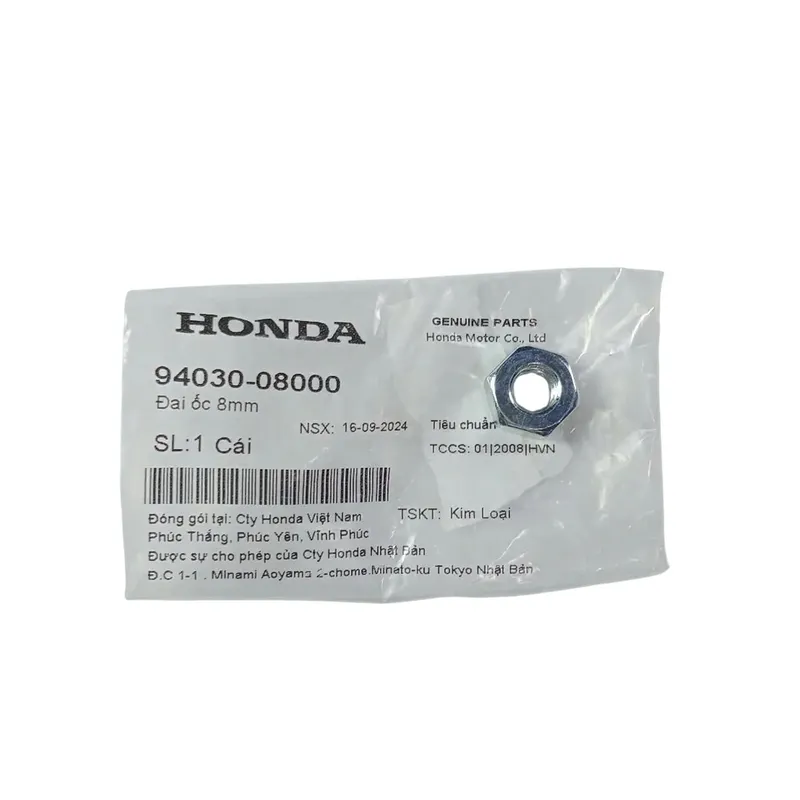

9403008000 - Đai Ốc 8Mm Cub - C70, Dream, Future, Wave

[16]9403008000

5.500 VNĐ
17

9430108140 - Chốt Định Vị 8X14 Air Blade, Dream, Lead, Pcx, Sh, Sh Mode, Wave

[17]9430108140

7.560 VNĐ
18

960010604000 - Bu Lông 6X40 Air Blade, Cub - C70, Dream, Future, Lead, Pcx, Sh, Sh Mode, Wave

[18]960010604000

5.500 VNĐ
