Chi tiết sơ đồ tài liệu tra cứu phụ tùng:

BỘ PHỤ TÙNG F - 14 CATALOGUE YÊN XE / ẮC QUY (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

Name: BỘ PHỤ TÙNG F - 14 CATALOGUE YÊN XE / ẮC QUY (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)
Brand: HONDA
SKU: PTHD03991
Availability: InStock
Rating: 0 (0 reviews)

TIẾP

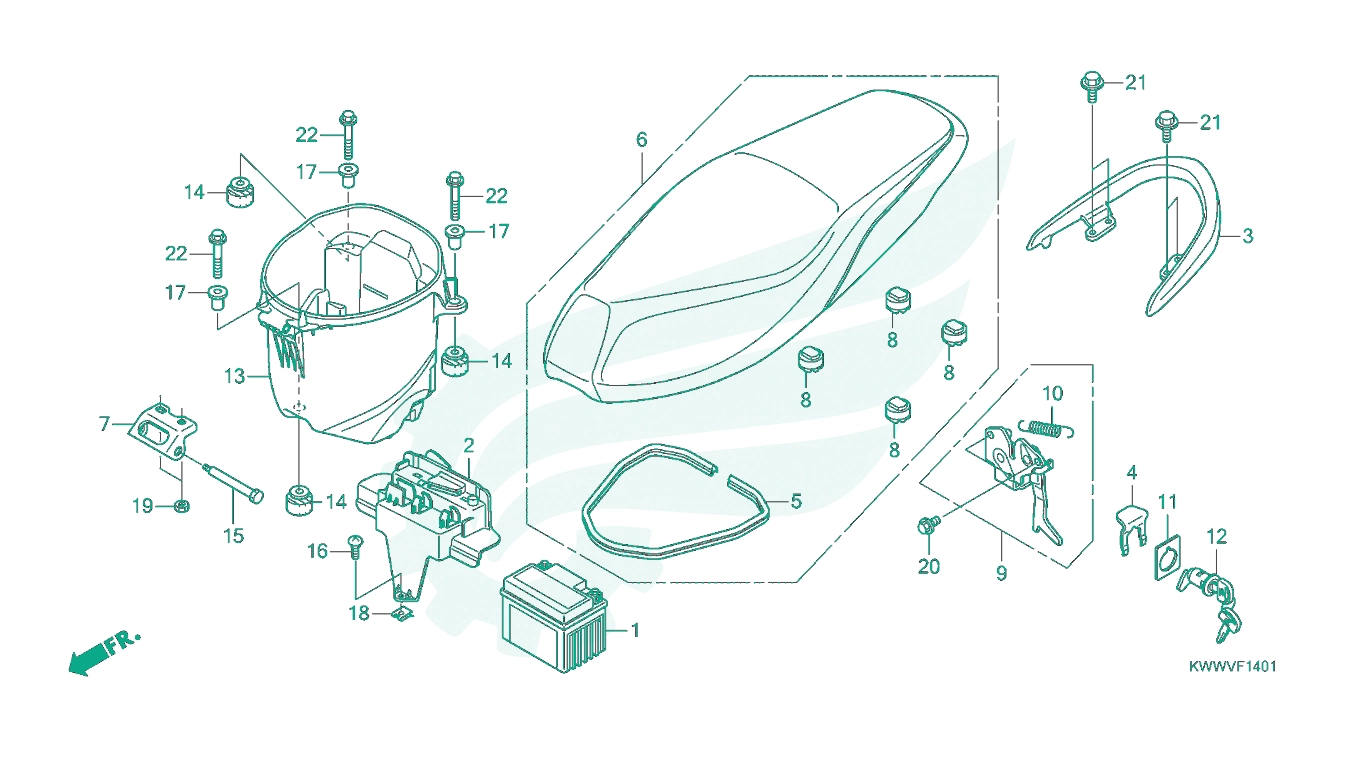

Sơ đồ phụ tùng Honda - BỘ PHỤ TÙNG F - 14 CATALOGUE YÊN XE / ẮC QUY (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

1

31500KPHB31 - Bình Ắc Quy ( Bình Điện ) ( Gtz5S12V 3.5A ) Click 110 ( 2006+ ) , Future Neo Ktmj, Future Neo 2007, Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[1]31500KPHB31

328.320 VNĐ
1

31500KWWB20 - Bình Ắc Quy ( Bình Điện ) ( Gtz4V 12V 3.0A ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[1]31500KWWB20

325.080 VNĐ
1

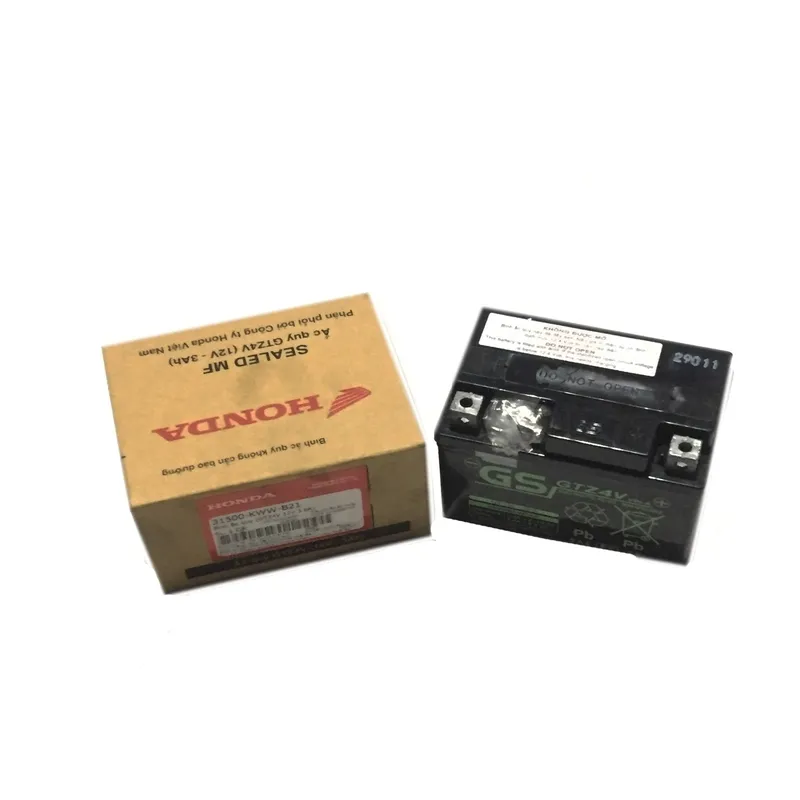

31500KWWB21 - Bình Ắc Quy ( Bình Điện ) ( Gtz4V 12V 3.0A ) Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Future 125 Fi ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future 125 K73 ( 2020 ) , Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[1]31500KWWB21

328.320 VNĐ
2

50381KWWB20 - Nắp Hộp Đựng Bình Ắcquy Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[2]50381KWWB20

23.760 VNĐ
3

50400KWWA00 - Tay Dắt Sau ( Tay Xách Sau ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[3]50400KWWA00

216.000 VNĐ
3

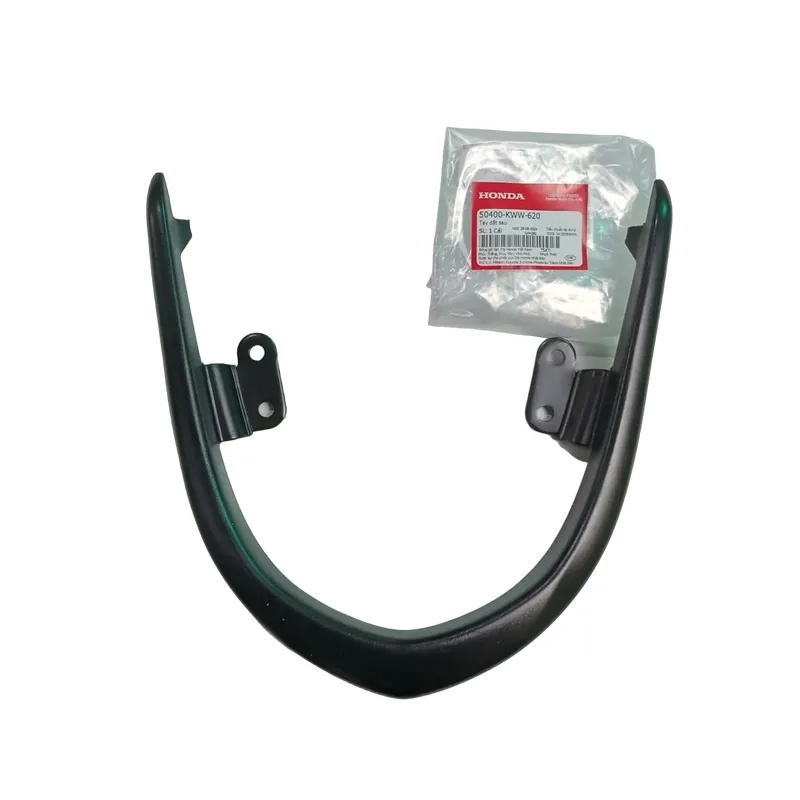

50400KWW620 - Tay Dắt Sau ( Tay Xách Sau ) Blade 110 ( 2016 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[3]50400KWW620

172.800 VNĐ
4

75581GN8920 - Lò Xo Cài Khóa Yên Winner 150 ( 06 / 2016 - 07 / 2019 ) , Super Dream ( C100 M1 - M4 - M6 ) , Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Wave Alpha 110 ( 2021+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Wave Alpha 110 ( 2024 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Goldwing ( 2023 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

[4]75581GN8920

13.200 VNĐ
5

77115KWB600 - Cao Su ( Caosu ) Bịt Kín Yên Xe Blade 110 ( 2016 ) , Wave Alpha 110 ( 2021+ ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

[5]77115KWB600

15.120 VNĐ
6

77200KWWB20 - Yên Xe Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[6]77200KWWB20

644.760 VNĐ
6

77200KWWB80 - Yên Xe Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[6]77200KWWB80

509.760 VNĐ
7

77201KWWB20 - Bản Lề Yên Xe Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[7]77201KWWB20

24.840 VNĐ
8

77214KPH900 - Cao Su ( Caosu ) B Đệm Bản Lề Yên Xe Cb500X ( 2019+ ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Vision 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Wave Alpha 110 ( 2024 ) , Sh 350 ( 2021 ) , Sh 350 ( 2023 ) , Future 125 ( 2015+ ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Winner X ( 07 / 2019+ ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Cb500X ( 2021+ )

[8]77214KPH900

8.640 VNĐ
9

77230KWW600 - Cụm Khóa Yên Xe Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[9]77230KWW600

93.960 VNĐ
10

77234GN2000 - Lò Xo Khóa Yên Xe Cb500X ( 2019+ ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Dream 110, Air Blade 125 / Air Blade 150 ( 2020+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Wave Alpha 110 ( 2021+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Air Blade 125 K27G ( 2014 ) , Wave Alpha 110 ( 2024 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Cbr650R ( 2019 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 )

[10]77234GN2000

31.320 VNĐ
11

77236GW0000 - Đệm Khóa Yên Xe Winner 150 ( 06 / 2016 - 07 / 2019 ) , Dream 110, Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Wave Alpha 110 ( 2024 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[11]77236GW0000

5.500 VNĐ
12

77240KTM851 - Khóa Yên Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Wave Alpha 110 ( 2024 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 )

[12]77240KTM851

391.600 VNĐ
13

80124KPH700 - Vòng Đệm Wave 110 Rsx ( 2014 - 2018 ) , Super Cub C125, Future 125 Fi ( 2021+ ) , Future 125 K73 ( 2020 ) , Future Neo 2007, Future 125 ( 2015+ ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 )

[13]80124KPH700

5.400 VNĐ
14

81250KWWB20 - Khoang Chứa Đồ Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[14]81250KWWB20

147.960 VNĐ
15

81253KPH900 - Đệm Cao Su ( Caosu ) Bắt Hộp Đồ Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Wave Alpha 110 ( 2024 ) , Future Neo 2007, Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[15]81253KPH900

8.640 VNĐ
16

90105KPH900 - Bu Lông Bắt Bản Lề Yên Click 110 ( 2006+ ) , Future Neo Ktmj, Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[16]90105KPH900

15.400 VNĐ
17

90129KWB600 - Bu Lông 6X30 Blade 110 ( 2016 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[17]90129KWB600

9.900 VNĐ
18

90502KPH900 - Bạc Đệm 6.2X20 Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Wave Alpha 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Wave Alpha 110 ( 2024 ) , Future Neo 2007, Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 100 Kwyp ( 2013 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave 110 K89 ( 2017 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[18]90502KPH900

8.640 VNĐ
19

90634KPG900 - Kẹp Nắp Hộp Ắc Quy Future 125 Fi ( 2021+ ) , Future 125 K73 ( 2020 ) , Future 125 ( 2015+ ) , Wave 100 Kwyp ( 2013 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[19]90634KPG900

7.560 VNĐ
20

94001060700S - Đai Ốc 6Mm Winner 150 ( 06 / 2016 - 07 / 2019 ) , Super Dream ( C100 M1 - M4 - M6 ) , Cb500X ( 2019+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Wave 110 Rsx K07 ( 2012 ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Cbr150R ( 2021 ) , Future 125 ( 2015+ ) , Rebel 500 ( 2021 ) , Wave Rsx 110 ( 2019 ) , Rebel 1100 ( 2022 ) , Wave 100 Kwyp ( 2013 ) , Winner X ( 07 / 2019+ ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Rebel 500 ( 2023 ) , Cbr650R ( 2019 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Rebel 1100 ( 2023 )

[20]94001060700S

5.500 VNĐ
21

957010601200 - Bu Lông 6X12 Xe Ga, Xe Số

[21]957010601200

5.500 VNĐ
22

957010801407 - Bu Lông 8X24 Wave Blade, Wave Rs, Wave Rsx, Wave S

[22]957010801407

6.600 VNĐ
23

960010603000 - Bu Lông 6X30 Future, Wave

[23]960010603000

5.500 VNĐ
24

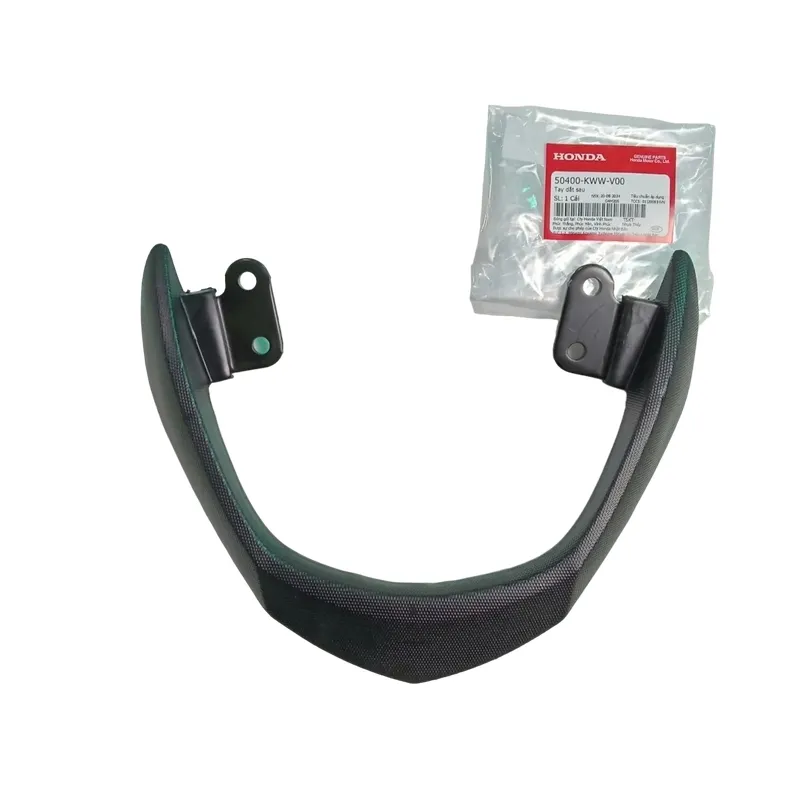

50400KWWV00 - Tay Dắt Sau ( Tay Xách Sau ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[24]50400KWWV00

194.400 VNĐ

SƠ ĐỒ TÀI LIỆU KHÁC CÙNG THUỘC BỘ CATALOGUE

TRANG TÀI LIỆU	NHÓM TÀI LIỆU
BỘ PHỤ TÙNG E - 1 CATALOGUE ỐP ĐẦU QUY LÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 2 CATALOGUE ĐẦU QUY LÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 3 CATALOGUE TRỤC CAM / XU PÁP HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 4 CATALOGUE XÍCH CAM / CĂNG XÍCH CAM HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 5 CATALOGUE XY LANH HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 6 CATALOGUE ỐP VÁCH MÁY PHẢI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 7 CATALOGUE LY HỢP MỘT CHIỀU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 8 CATALOGUE LY HỢP HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 9 CATALOGUE BƠM DẦU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 10 CATALOGUE ỐP VÁCH MÁY TRÁI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 11 CATALOGUE MÁY PHÁT HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 12 CATALOGUE LY HỢP KHỞI ĐỘNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 13 CATALOGUE MÔ TƠ ĐỀ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 14 CATALOGUE VÁCH MÁY HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 15 CATALOGUE TRỤC CƠ / PISTON HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG E - 16 CATALOGUE BỘ TRUYỀN ĐỒNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG E - 17 CATALOGUE HEO SỐ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG E - 18 CATALOGUE TRỤC CẦN KHỞI ĐỘNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG E - 19 CATALOGUE CHẾ HÒA KHÍ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 1 CATALOGUE ĐÈN PHA HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 2 CATALOGUE ĐỒNG HỒ (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 2 - 1 CATALOGUE ĐỒNG HỒ (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 3 CATALOGUE TAY PHANH / CÔNG TẮC / DÂY / GƯƠNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 4 CATALOGUE XY LANH CHÍNH PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 5 CATALOGUE ỐP TAY LÁI / ỐNG TAY LÁI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 6 CATALOGUE CỔ LÁI HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 7 CATALOGUE CHẮN BÙN TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 8 CATALOGUE GIẢM XÓC TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 9 CATALOGUE BÁT PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 9 - 1 CATALOGUE NGÀM PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 10 CATALOGUE BÁNH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 10 - 2 CATALOGUE BÁNH XE TRƯỚC (ANF110MCV / AFX - AFS110MCS) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 11 CATALOGUE BÁT PHANH SAU WAVE 110S (04 / 2009–04 / 2013) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 12 CATALOGUE BÁNH XE SAU (ANF110MCV / AFX - AFS110MCS) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 12 - 1 CATALOGUE BÁNH XE SAU (ANF110MCV / AFX - AFS110MCS) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 13 CATALOGUE BÌNH XĂNG (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 13 - 1 CATALOGUE BÌNH XĂNG (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 14 - 1 CATALOGUE YÊN XE / ẮC QUY (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 15 CATALOGUE BỘ ỐP THÂN XE (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 16 CATALOGUE LỌC GIÓ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 16 - 1 CATALOGUE VAN HÚT KHÍ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 17 CATALOGUE ỐNG XẢ (ANF110 / AFS110) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG E - 17 - 1 CATALOGUE ỐNG XẢ (AFX110) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 18 CATALOGUE CÀNG SANG SỐ / CẦN KHỞI ĐỘNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 19 CATALOGUE GÁC CHÂN HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 20 CATALOGUE CHÂN CHỐNG HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 21 CATALOGUE CÀNG SAU (GẮP SAU) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 22 CATALOGUE GIẢM XÓC SAU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 23 CATALOGUE CHẮN BÙN SAU (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 23 - 1 CATALOGUE CHẮN BÙN SAU (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 24 CATALOGUE CỤM ĐÈN SAU HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 25 CATALOGUE BỘ DÂY ĐIỆN (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 25 - 1 CATALOGUE BỘ DÂY ĐIỆN (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 26 CATALOGUE KHUNG XE HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 27 CATALOGUE MẶT NẠ TRƯỚC (ANF1109 / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 27 - 1 CATALOGUE MẶT NẠ TRƯỚC (AFX110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 27 - 2 CATALOGUE MẶT NẠ TRƯỚC (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 28 CATALOGUE ỐP ỐNG CHÍNH KHUNG (ANF1109 / AFX110A,B / AFS110A,B) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Frames
BỘ PHỤ TÙNG F - 28 - 1 CATALOGUE ỐP ỐNG CHÍNH KHUNG (AFS110C) HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG F - 29 CATALOGUE DỤNG CỤ HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG F - 30 CATALOGUE NHÃN CẢNH BÁO HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines
BỘ PHỤ TÙNG F - 31 CATALOGUE TEM MÁC XE (ANF1109 / AFS110A) TEM MÁC XE HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)	Engines

HỢP TÁC PHÁT TRIỂN HỆ THỐNG PHỤ TÙNG CÙNG ICSPARTS Co., Ltd

CHIA SẺ FILE EXCEL BẢNG GIÁ PHỤ TÙNG & FILE BỘ NHỰA

TẢI VỀ

TỔNG GIÁ TẠM TÍNH LÀ: 3.553.980 VNĐ VÀ CÓ TẤT CẢ: 28 CHI TIẾT
