Chi tiết sơ đồ tài liệu tra cứu phụ tùng:

BỘ PHỤ TÙNG F - 4 CATALOGUE XY LANH CHÍNH PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

Name: BỘ PHỤ TÙNG F - 4 CATALOGUE XY LANH CHÍNH PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)
Brand: HONDA
SKU: PTHD03977
Availability: InStock
Rating: 0 (0 reviews)

TIẾP

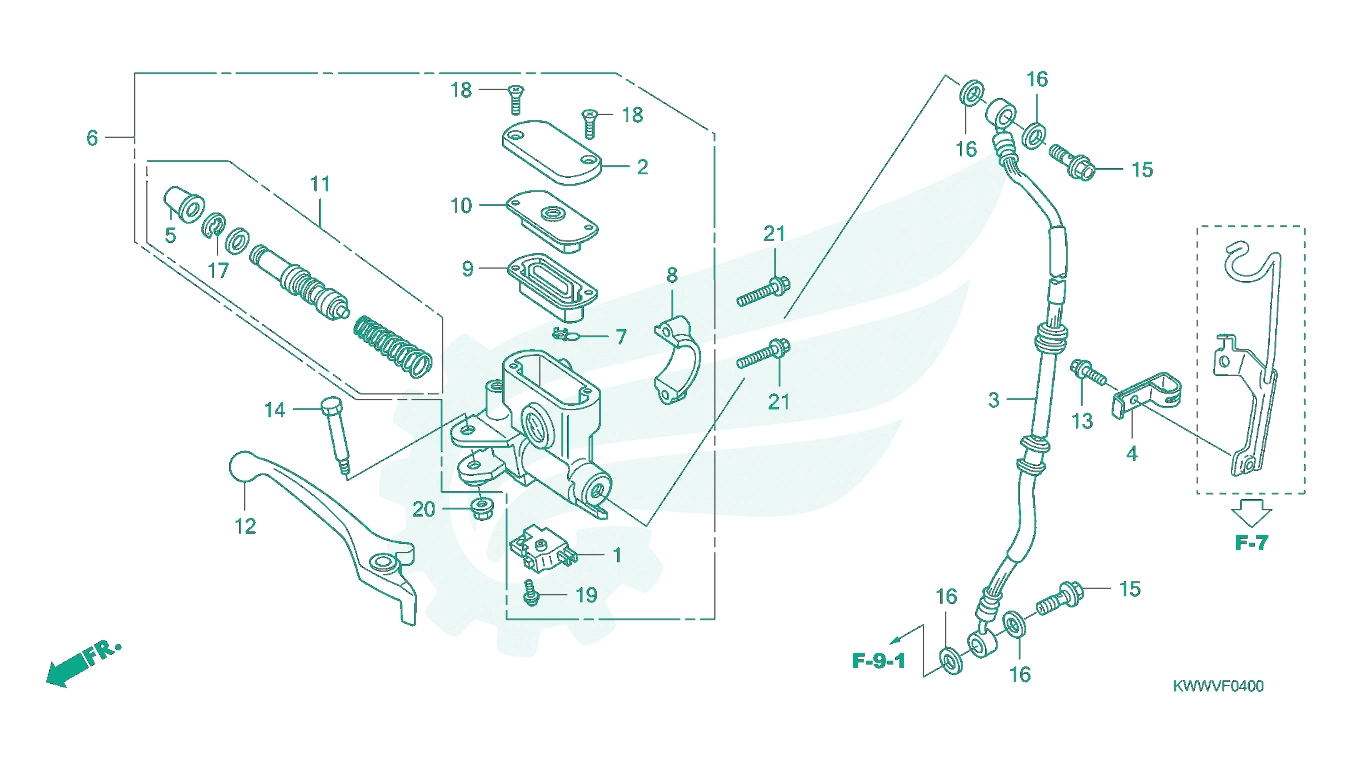

Sơ đồ phụ tùng Honda - BỘ PHỤ TÙNG F - 4 CATALOGUE XY LANH CHÍNH PHANH TRƯỚC HONDA WAVE 110 S (04 / 2009 - 04 / 2013) / WAVE 110 RS (04 / 2009 - 04 / 2013) / WAVE 110 RSX (09 / 2009 - 03 / 2012)

1

35340KWB601 - Công Tắc Đèn Phanh Đĩa Trước Winner 150 ( 06 / 2016 - 07 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh Mode ( 07 / 2020+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future 125 K73 ( 2020 ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 )

[1]35340KWB601

51.840 VNĐ
2

43513KBP881 - Nắp Hộp Dầu Phanh ( Dầu Thắng ) Winner 150 ( 06 / 2016 - 07 / 2019 ) , Cb300R ( 2018+ ) , Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Wave 110 Rsx K07 ( 2012 ) , Winner X ( 2022+ ) ( K2P ) , Future 125 K73 ( 2020 ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Winner X ( 07 / 2019+ ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Cb150R ( 2022 )

[2]43513KBP881

20.520 VNĐ
3

45126KWWA00 - Ống Dẫn Dầu Phanh ( Dầu Thắng ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[3]45126KWWA00

298.080 VNĐ
3

45126KWWA01 - Ống Dẫn Dầu Phanh ( Dầu Thắng ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[3]45126KWWA01

298.080 VNĐ
3

45126KWWE01 - Ống Dẫn Dầu Phanh ( Dầu Thắng ) Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[3]45126KWWE01

319.680 VNĐ
5

45504410003 - Bao Chắn Bụi Piston Phanh Air Blade, Click, Future, Lead, Pcx, Sh, Sh Mode, Spacy, Vision, Wave

[5]45504410003

10.800 VNĐ
6

45510KWB601 - Cụm Xy Lanh Phanh Dầu Chính Wave 110 Rsx K07 ( 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 )

[6]45510KWB601

486.000 VNĐ
7

45512MA6006 - Nắp Chắn Dầu Winner 150 ( 06 / 2016 - 07 / 2019 ) , Msx 125, Sh 125 / Sh 150 ( 01 / 2020+ ) , Cb500X ( 2019+ ) , Cb300R ( 2018+ ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Msx 125 Sf, Rebel 300 ( Cmx300 ) , Sh Mode ( 07 / 2020+ ) , Air Blade 125 / Air Blade 150 ( 2020+ ) , Pcx ( 01 / 2018+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Super Cub C125, Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Pcx ( 2014 - 2017 ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 160 K1Z ( 2021+ ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Sh 125 / Sh 160 ( 2024 ) , Air Blade 125 K27G ( 2014 ) , Sh 350 ( 2021 ) , Sh 350 ( 2023 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Vario 160 ( 2023 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Rebel 500 ( 2021 ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Rebel 1100 ( 2022 ) , Sh 125 Và 150 Italia ( 2005 - 2008 ) , Winner X ( 07 / 2019+ ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Rebel 500 ( 2023 ) , Cbr650R ( 2019 ) , Goldwing ( 2023 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Sh 125 / Sh 160 ( 2023 ) , Cb150R ( 2022 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Rebel 1100 ( 2023 ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Lead 110 ( 01 / 2009 - 03 / 2013 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

[7]45512MA6006

6.480 VNĐ
8

45517GW0751 - Đai Bắt Cụm Xylanh Phanh ( Cùm Thắng Dầu ) Chính Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Air Blade 125 K27G ( 2014 ) , Future 125 ( 2015+ ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Lead 110 ( 01 / 2009 - 03 / 2013 )

[8]45517GW0751

15.120 VNĐ
9

45520GW0911 - Màng Hộp Dầu Phanh ( Dầu Thắng ) Chính Winner 150 ( 06 / 2016 - 07 / 2019 ) , Msx 125, Cb500X ( 2019+ ) , Cb300R ( 2018+ ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Msx 125 Sf, Air Blade 125 / Air Blade 150 ( 2020+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Air Blade 125 K27G ( 2014 ) , Vario 160 ( 2023 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Winner X ( 07 / 2019+ ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Cbr650R ( 2019 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Cb150R ( 2022 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Cb1000R ( 2023 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Air Blade 125 ( 12 / 2012 - 11 / 2015 )

[9]45520GW0911

15.120 VNĐ
10

45521GW0911 - Đệm Cách Hộp Dầu Phanh ( Dầu Thắng ) Chính Winner 150 ( 06 / 2016 - 07 / 2019 ) , Msx 125, Cb500X ( 2019+ ) , Cb300R ( 2018+ ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Msx 125 Sf, Air Blade 125 / Air Blade 150 ( 2020+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Air Blade 125 K27G ( 2014 ) , Vario 160 ( 2023 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Winner X ( 07 / 2019+ ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Cbr650R ( 2019 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Cb150R ( 2022 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Cb1000R ( 2023 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Air Blade 125 ( 12 / 2012 - 11 / 2015 )

[10]45521GW0911

6.480 VNĐ
11

45530KVY911 - Xylanh Phanh Cbs Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Pcx ( 01 / 2018+ ) , Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Pcx ( 2014 - 2017 ) , Wave 110 Rsx K07 ( 2012 ) , Air Blade 125 K27A ( 2012 ) , Air Blade 125 K27G ( 2014 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Future 125 ( 2015+ ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

[11]45530KVY911

113.400 VNĐ
12

53175KRST80 - Tay Phanh ( Tay Thắng ) Bên Phải Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh Mode ( 07 / 2020+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[12]53175KRST80

42.120 VNĐ
12

53175KET921 - Tay Phanh ( Tay Thắng ) Bên Phải Winner 150 ( 06 / 2016 - 07 / 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[12]53175KET921

71.280 VNĐ
13

90102KGH900 - Bu Lông 6X10 Wave 110 Rsx ( 2014 - 2018 ) , Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[13]90102KGH900

9.900 VNĐ
14

90114KGH900 - Bu Lông Bắt Tay Phanh ( Tay Thắng ) Winner 150 ( 06 / 2016 - 07 / 2019 ) , Msx 125, Cb300R ( 2018+ ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Msx 125 Sf, Sh Mode ( 07 / 2020+ ) , Air Blade 125 / Air Blade 150 ( 2020+ ) , Pcx ( 01 / 2018+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Super Cub C125, Blade 110 ( 2016 ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Pcx ( 2014 - 2017 ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 160 K1Z ( 2021+ ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Vario 160 ( 2023 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Wave Rsx 110 ( 2019 ) , Winner X ( 07 / 2019+ ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Cb150R ( 2022 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Pcx 125 K35A ( Ww125E ) ( 2013 )

[14]90114KGH900

14.040 VNĐ
15

90145KM3751 - Bu Lông Dầu 10X22 Future 125 Fi ( 2021+ ) , Wave 110 Rsx K07 ( 2012 ) , Future Neo Ktmj, Future 125 K73 ( 2020 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Wave Rsx 110 Kww ( 2013 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập

[15]90145KM3751

118.800 VNĐ
15

90145KPHB30 - Bu Lông Dầu 10X22 Msx 125, Sh 125 / Sh 150 ( 01 / 2020+ ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Sh Mode ( 07 / 2020+ ) , Air Blade 125 / Air Blade 150 ( 2020+ ) , Pcx ( 01 / 2018+ ) , Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Pcx ( 2014 - 2017 ) , Lead 125 ( 07 / 2017 - 06 / 2019 ) , Lead 125 ( 02 / 2013 - 02 / 2015 ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 160 K1Z ( 2021+ ) , Lead 125 ( 2022 ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Sh 125 / Sh 160 ( 2024 ) , Air Blade 125 K27G ( 2014 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Vario 160 ( 2023 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Future 125 ( 2015+ ) , Vision 110 ( 2023 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Lead 125 K12 ( 2019+ ) , Wave Rsx 110 Kww ( 2013 ) , Sh 125 / Sh 160 ( 2023 ) , Cb150R ( 2022 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Lead 110 ( 01 / 2009 - 03 / 2013 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

[15]90145KPHB30

17.280 VNĐ
16

90545300000 - Vòng Đệm Bu Lông Dầu Xe Ga, Xe Số

[16]90545300000

9.900 VNĐ
17

90651MA5671 - Phanh Cài ( Phe Cài ) Msx 125, Sh 125 / Sh 150 ( 01 / 2020+ ) , Cb500X ( 2019+ ) , Cb300R ( 2018+ ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Msx 125 Sf, Pcx ( 01 / 2018+ ) , Blade 110 ( 2016 ) , Vision 110 ( 08 / 2011 - 08 / 2014 ) , Vision 110 ( 09 / 2014+ ) , Pcx ( 2014 - 2017 ) , Lead 125 ( 07 / 2017 - 06 / 2019 ) , Lead 125 ( 02 / 2013 - 02 / 2015 ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 160 K1Z ( 2021+ ) , Lead 125 ( 2022 ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Sh 125 / Sh 160 ( 2024 ) , Air Blade 125 K27G ( 2014 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Rebel 1100 ( 2022 ) , Cb250 Nighthawk, Sh 125 Và 150 Italia ( 2005 - 2008 ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Cbr650R ( 2019 ) , Goldwing ( 2023 ) , Lead 125 K12 ( 2019+ ) , Wave Rsx 110 Kww ( 2013 ) , Sh 125 / Sh 160 ( 2023 ) , Cb150R ( 2022 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Rebel 1100 ( 2023 ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Lead 110 ( 01 / 2009 - 03 / 2013 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

[17]90651MA5671

7.560 VNĐ
18

93600040121G - Vít Nón 4X12 Winner 150 ( 06 / 2016 - 07 / 2019 ) , Msx 125, Sh 125 / Sh 150 ( 01 / 2020+ ) , Cb500X ( 2019+ ) , Cb300R ( 2018+ ) , Sh 125 Và Sh 150 ( 11 / 2016 - 11 / 2019 ) , Air Blade 125 ( 11 / 2015 - 12 / 2019 ) , Sh Mode ( 05 / 2013 - 12 / 2018 ) , Sh 125 Và Sh 150 ( 09 / 2009 - 10 / 2016 ) , Msx 125 Sf, Rebel 300 ( Cmx300 ) , Sh Mode ( 07 / 2020+ ) , Air Blade 125 / Air Blade 150 ( 2020+ ) , Pcx ( 01 / 2018+ ) , Wave 110 Rsx ( 2014 - 2018 ) , Super Cub C125, Blade 110 ( 2016 ) , Vision 110 ( 09 / 2014+ ) , Future 125 Fi ( 2021+ ) , Blade 110 ( 10 / 2020+ ) , Vision 110 ( 2021+ ) , Pcx ( 2014 - 2017 ) , Click 110 ( 2006+ ) , Wave 110 Rsx K07 ( 2012 ) , Pcx 160 K1Z ( 2021+ ) , Winner X ( 2022+ ) ( K2P ) , Future Neo Ktmj, Air Blade 125 K27A ( 2012 ) , Future 125 K73 ( 2020 ) , Sh 125 / Sh 160 ( 2024 ) , Air Blade 125 K27G ( 2014 ) , Sh 350 ( 2021 ) , Sh 350 ( 2023 ) , Pcx 125 / Pcx 150 ( Ww125J Ww150J ) ( 2017 - 2020 ) , Vario 160 ( 2023 ) , Air Blade 125 / Air Blade 160 K2Z K3A ( 2023+ ) , Cb300R ( 2019+ ) , Future 125 ( 2015+ ) , Rebel 500 ( 2021 ) , Vision 110 ( 2023 ) , Wave Rsx 110 ( 2019 ) , Rebel 1100 ( 2022 ) , Cb250 Nighthawk, Sh 125 Và 150 Italia ( 2005 - 2008 ) , Winner X ( 07 / 2019+ ) , Pcx ( 08 / 2010 - 08 / 2012 ) , Wave 110 S ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rs ( 04 / 2009 - 04 / 2013 ) / Wave 110 Rsx ( 09 / 2009 - 03 / 2012 ) , Air Blade 110 ( 03 / 2007 - 12 / 2012 ) , Cbr500R ( 2019 ) , Cbr500R ( 2021 ) , Rebel 500 ( 2023 ) , Cbr650R ( 2019 ) , Goldwing ( 2023 ) , Wave 110 K03V ( 2014 ) , Wave Rsx 110 Kww ( 2013 ) , Sh 125 / Sh 160 ( 2023 ) , Cb150R ( 2022 ) , Cb500F ( 2021+ ) , Cb500X ( 2021+ ) , Cb650R ( 2021 ) , Wave A / Wave A+ / Wave Zx / Wave Rsv / Wave Alpha / Wave Rs / Wave S / Wave 100S Nhập, Rebel 1100 ( 2023 ) , Air Blade 125 ( 12 / 2012 - 11 / 2015 ) , Lead 110 ( 01 / 2009 - 03 / 2013 ) , Pcx 125 K35A ( Ww125E ) ( 2013 )

[18]93600040121G

5.400 VNĐ
19

938930401217 - Vít Có Đệm 4X12 Air Blade, Click, Future, Lead, Pcx, Sh, Sh Mode, Spacy, Vision, Wave

[19]938930401217

5.400 VNĐ
20

9405006000 - Đai Ốc 6Mm Xe Ga, Xe Số

[20]9405006000

6.600 VNĐ
21

960010602200 - Bu Lông 6X22 Air Blade, Dream, Future, Lead, Sh, Sh Mode, Spacy, Vision, Wave

[21]960010602200

5.500 VNĐ
